MATERIAL PROPERTIES TESTER

HOME | PRODUCTS | CABLE TEST SYSTEMS | MATERIAL PROPERTIES TESTER
MATERIAL PROPERTIES TESTER

MATERIAL PROPERTIES TESTER
SM-216-3

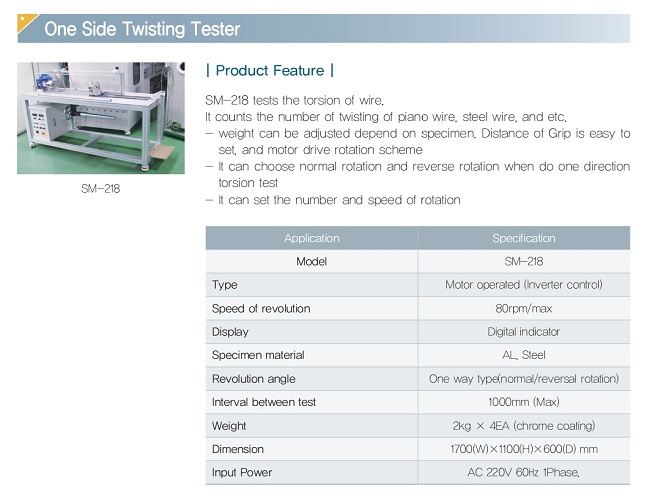

ONE SIDE TWISTING TESTER (SM-216)

Model SM-216
Type Electric inverter control
Test rotating speed 80 rpm / Max
Display method Digital indicator
Specimen 0-30a
Rotation angle Selection of one way direction
(clockwise/counter clockwise rotation) available
Test interval 1000mm (Max)
Weight 2Kg x 4EA (Chrome coating)
Dimensions 1700(W) x 1100(H) x 600(D) (mm)
Power supply AC 220V 60Hz 1Phase

MATERIAL PROPERTIES TESTER

MATERIAL PROPERTIES TESTER
SM-KAT01

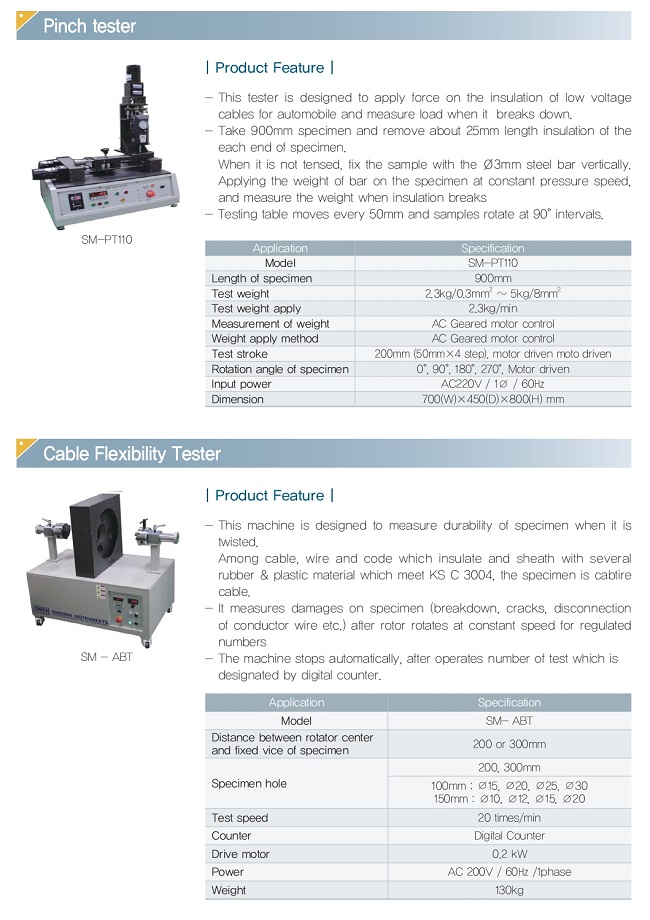

PINCH TESTER (SM-PT110)

Model SM-PT110
Sample length 900mm
Test load 3KG / 0.3 ~ 4.2KG / 5
Maximum test load 20kg . f
Load measurement LOAD CELL & PUSH PULL GAGUE
Loading pressure method AC GEARED MOTOR CONTROL
Test procedures 200mm (50mm x 4 STEP), MOTOR DRIVEN
Sample rotation angle 0, 90, 180, 270 MOTOR DRIVEN
Power supply AC220V / 1a / 60Hz
Product size 700(W)x450(D)x800(H) (mm)

MATERIAL PROPERTIES TESTER

MATERIAL PROPERTIES TESTER
SM-214-3
ABRASION TESTER (SM-ABT)

Model SM-ABT
Sample hole 200, 300mm
Test speed 20Min
Motor drive 0.2kw
Power AC 220V/60Hz1a
Weight App. 130kg

MATERIAL PROPERTIES TESTER

MATERIAL PROPERTIES TESTER
MIXING ROLL

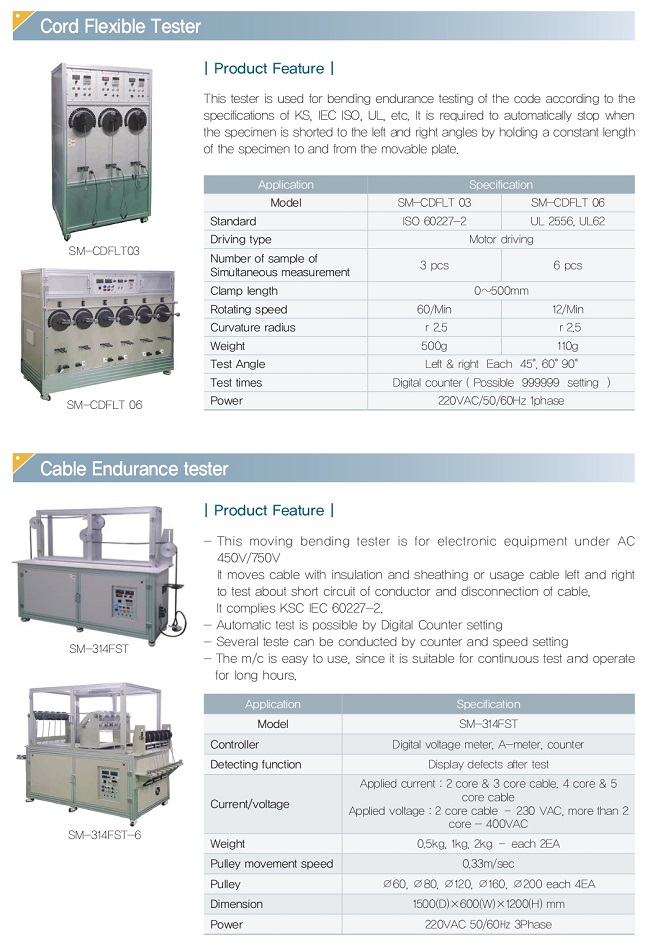

CABLE ENDURANCE TESTER (SM-314FST)

Model SM-314FST
Control unit Digital voltmeter and ammeter, counter
Determination function Display of faulty condition after testing
Operating specifications Current : 2 core and 3 core cables, 4 core and 5 core cables
Weight 0.5kg, 1kg, 2kg, 2EA each
Pully a60, a80, a120, a160
Size 1500 x 600 x 1200
Power 200VAC , 50 / 60Hz - 3Phase

MATERIAL PROPERTIES TESTER

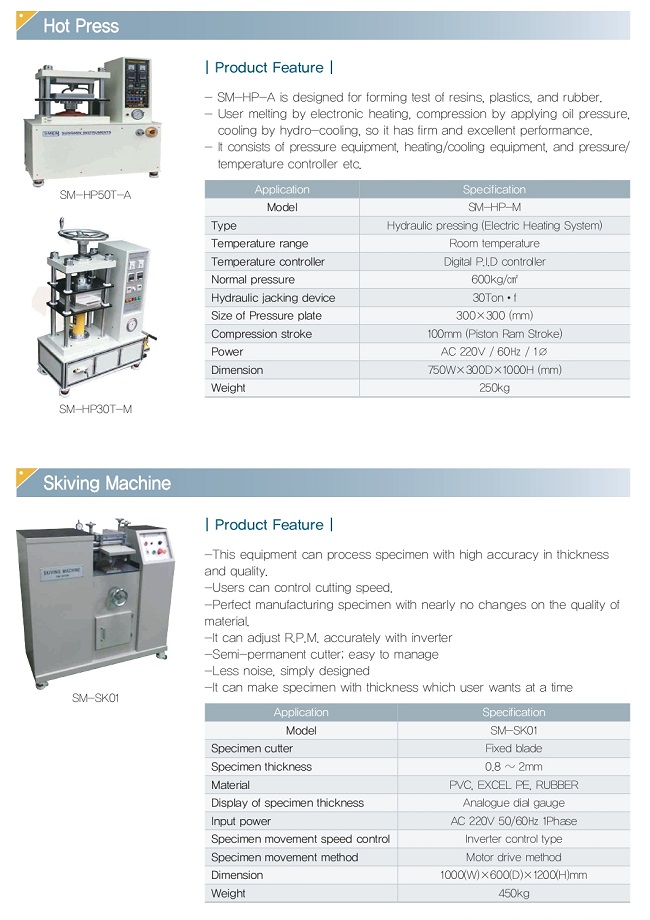

HOT PRESS (SM-HP-4 / SM-HP=M)

Model SM-HP-M
Type

Hydraulic Pressing

(Electric Heating System)

Temperature range Room temperature
Temperature controlloer Digital P.I.D Controller
Working pressure 600kg/
Pressure plate size 250 * 250 (mm)
Power AC 220V / 650Hz 1a
Size 750 * 300 * 1000
Weight 100KG

MATERIAL PROPERTIES TESTER

MATERIAL PROPERTIES TESTER
SKIVING MACHINE (SM-SK-01)

Model SM-SK-01
Specimen cutter type Fixed type blade
Specimen thickness control type Manual wheel
Specimen thickness indicator Analog dial gauge
Power supply AC 220V 50/60Hz 3a
Specimen carrying speed control Volume control type
Specimen carrying method Motor drive type
Product size 1000(W) x 600(D) x 1200(H) mm
Product load 450Kg
