CHAMBER

HOME | PRODUCTS | CABLE TEST SYSTEMS | CHAMBER
CHAMBER

CHAMBER
Air Changing oven(SM-RAT4000S)

Model SM-RAT 4000S
Temperature control range from Room temperature to + 300กษ
Temperature control accuracy กพ 1กษ
Replacement control type LCD Touch Panel Screen
Recorder Recorder / Recorder Printer
Heater control type Current output SCR control
Speed 5 ~ 8 rpm
Amount of replacement 8~20 times (IEC 60811)
Dimension of chamber 500*500*600mm
Power AC 220V 60Hz 1Phase

CHAMBER

CHAMBER

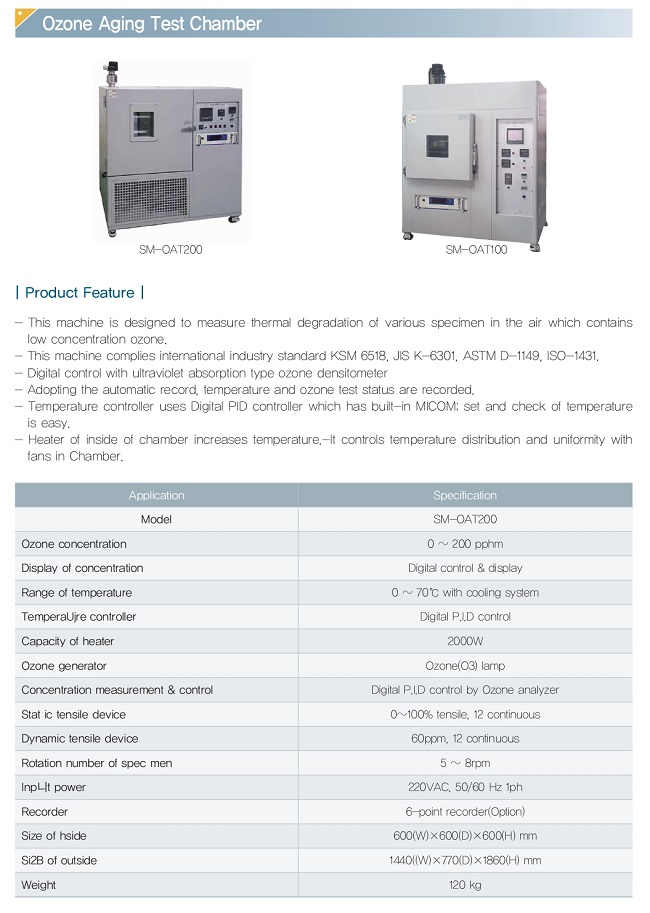

Ozone Aging Test Chamber(SM-OAT200)

Model SM-OAT 200
Ozone 0 - 200 pphm
Indication of density Digital control and indication type
Temperature range From room temperature to + 70กษ
Temperature controller Digital P.I.D control
Measure density measurement and how to measure Digital P.I.D control by Ozone Analyzer
Static system
12 year model with a growth of 0-100%
Power 220VAC 50/60Hz 1Ph
Internal dimension 600 x 600 x 600

CHAMBER

CHAMBER
Low Temb Bending Tester(SM-LT BSE)

Model SM-LT BSE
Type Digital temperature set type
Material of chamber Stainless Steel
Freezer 3 HP *1 EA Air-cooled type
Temperature controller Digital temperature controller/ touch screen (Optional)
Heater 1.2kW
Related standards IEC - 60811
Power 220VAC 50/60Hz 1Phase

CHAMBER

CHAMBER

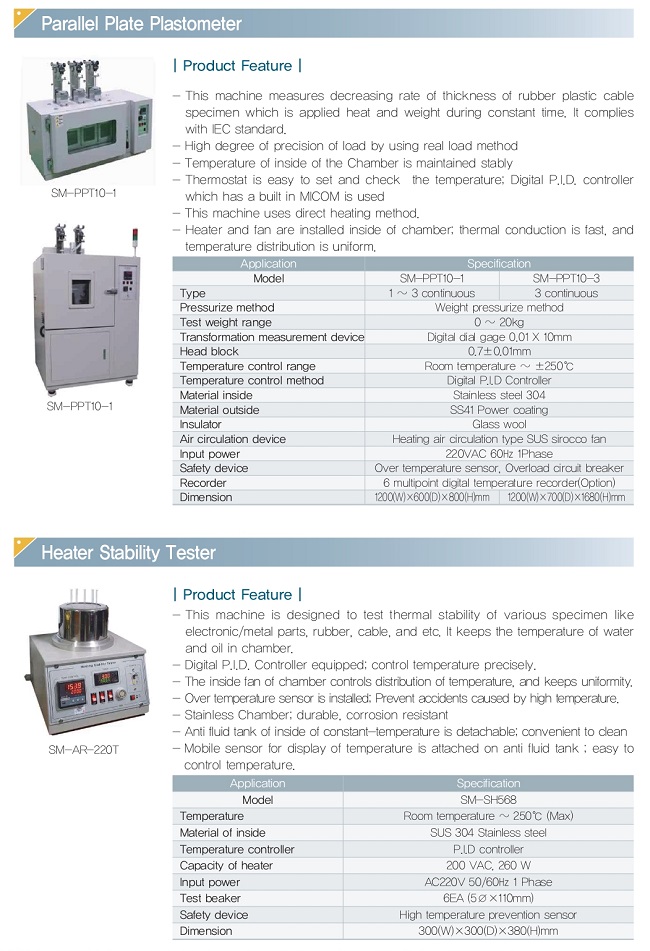

Parallel Plate Plastometer(SM-PPT10-1)

Model SM-PPT10-1
Type 1~3 Year Model
Test load range 0 - 20kg
Sensing device for deformation Dial Gauge 0.01 * 10mm
Pressure plate 0.7 กพ 0.01mm
Temperature control type Digital P.I.D Controller
Insulator Glass Wool
Recorder 6 point digital temperature recorder (optional)
Weight 120kg

CHAMBER

CHAMBER

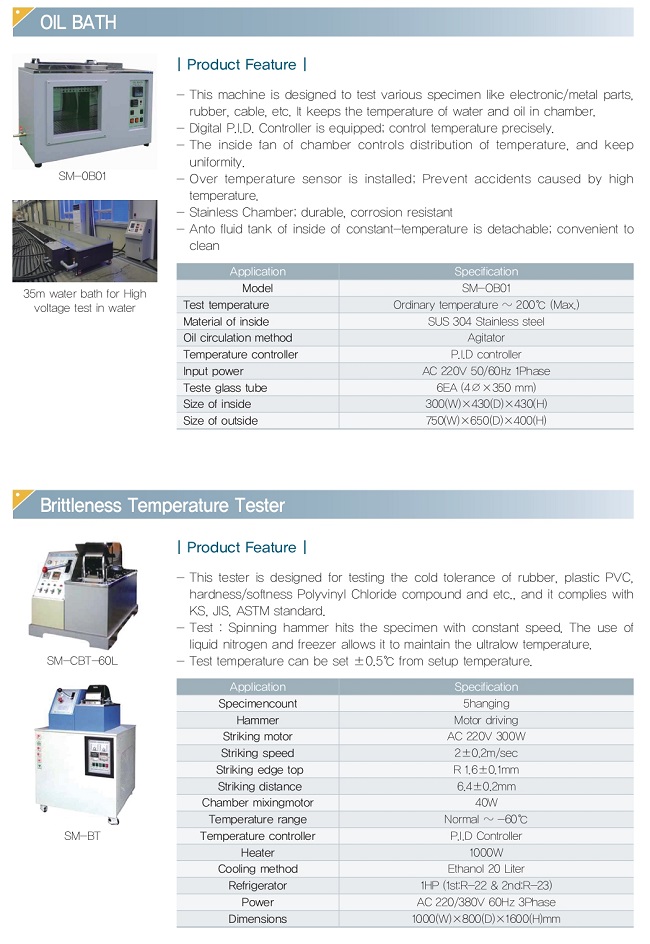

Oil Water Bath(SM-OB01)

Model SM-OB01

Test temperature

0 ~ 200กษ (MAX)
Interior materials SUS 304 Stainless steel
Power supply AC 220V 50/60Hz 1Phase
Glass tube for test 6EA ( 4a x 350)mm
Safety device Safety over-temperature controller mounted with timer. Over current Break
Internal dimension 300 x 430 x 430

CHAMBER

CHAMBER

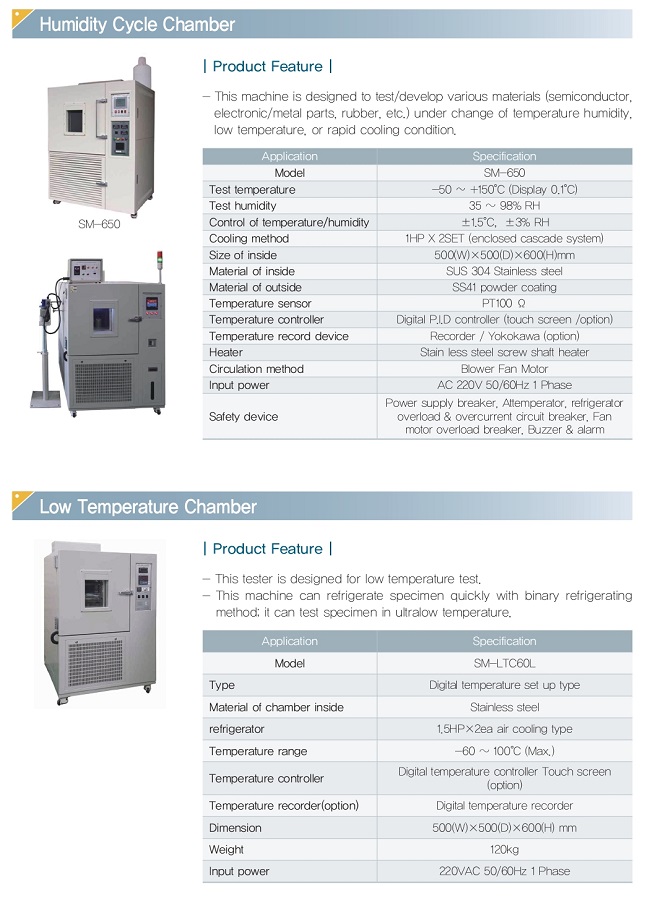

Humidity Cycle Chamber(SM650)

Model SM - 650
Test temperature -50 , +150กษ(0.1 กษ indicated)
Adjustment of temperature and humidity กพ1.5กษ, กพ3 % RH
Refrigeration 5HP *2SET(Closed two stage refrigeration)
Internal dimension 500 * 500 * 600
Temperature sensor PT 100งู
Temperature control Digital P.I.CONTROLLER (Touch screen)
Circulation method BLOWER FAN MOTOR
Power supply AC 220V 50/ 60Hz 1Phase
